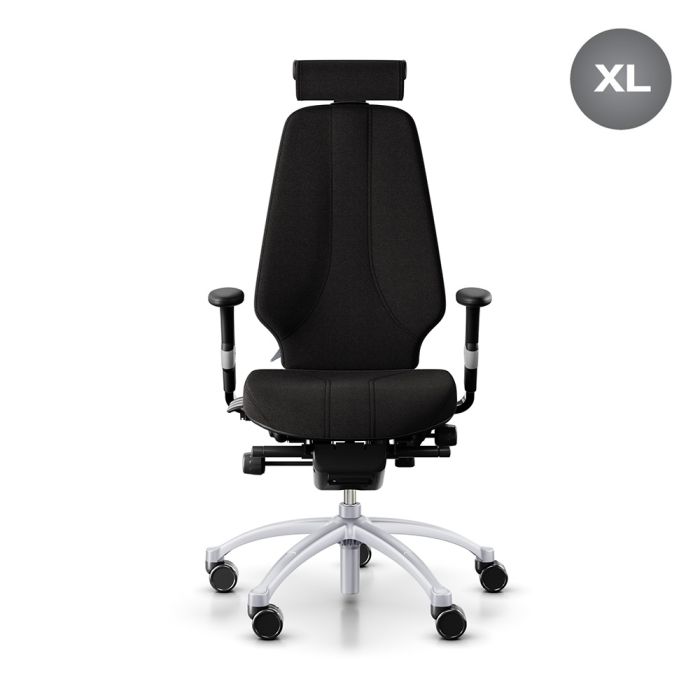

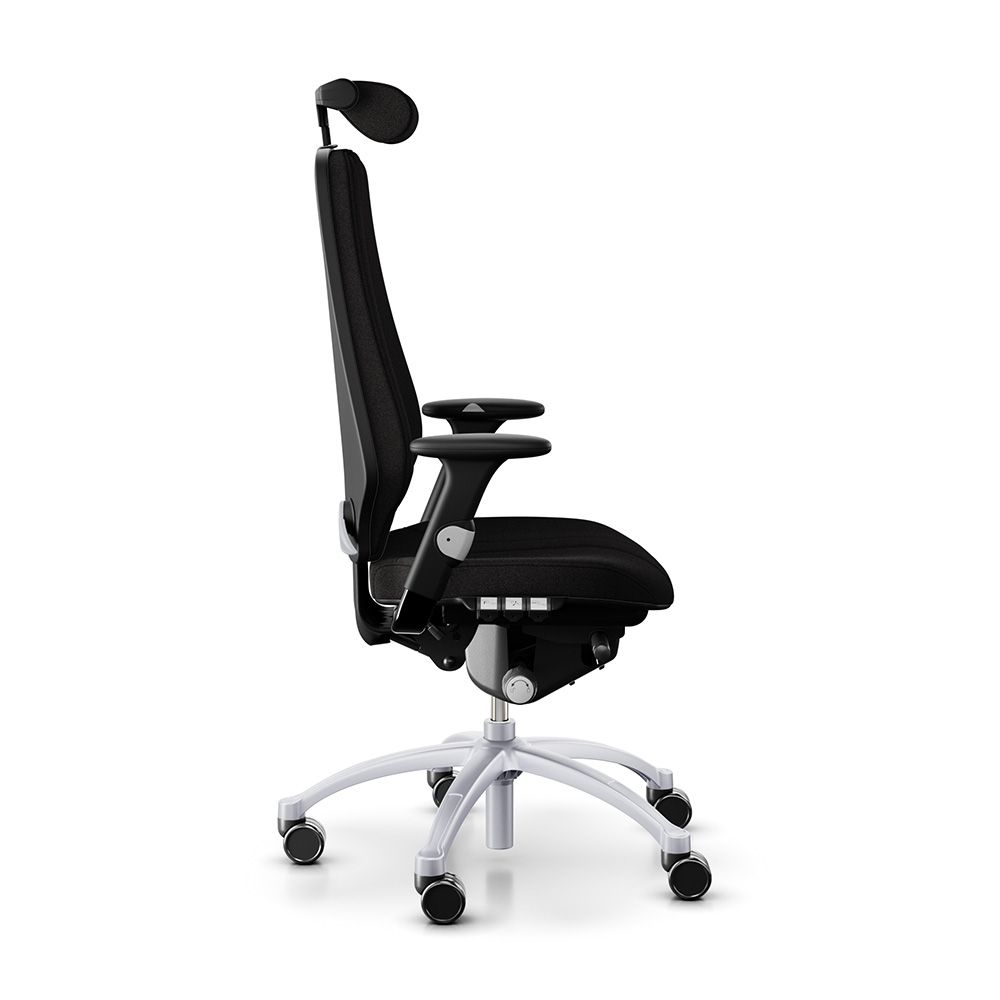

RH Logic 400 High Back (with armrests/neckrest/xl seat) - Black
Reasons to Buy
The RH Logic 400 is one of the most popular ergonomic office chairs in the world, due to its ergonomic features and excellent durability. It's wide range of independent adjustments allow it to be optimally fitted to the user.
When correctly set up, the RH Logic 400 will promote a good sitting posture, maintaining and supporting the natural S shape of the spine.
This is the XL seat version designed for the larger user.
- Available in black
- 8S Class A armrests - adjustable in height and width. Rotating. Armrest height above seat 215–295 mm
- XL Seat - 485(w) x 515(d) mm - suitable for larger users
- Height and depth adjustable neckrest
- High gas stem B (480-610 mm) - suitable for taller users
- Fully adjustable for seat height, back rake angle, back height, seat slide and lumbar support
- Unique '2PP' principle ensures optimum support and blood circulation during dynamic sitting
- Exchangeable seat and back pads to increase longevity and reduce cost of ownership
- Environmental impact is traceable through EPD (Environmental Product Declaration)
- Graphite 5X aluminium base
- Castors for carpeted floors
- Seat width:
- 485 mm
- Seat depth:
- 515 mm
- Seat height:
- 480-610 mm
- Seat sliding range:
- 60 mm
- Backrest width:
- 445 mm
- Backrest height:
- 630 mm
- Maximum user weight:
- 150 kg (23.5 stone)
- 28 kg
- 10 years, based on 8 hour use
Q: How do I adjust the back angle of my chair?
There is a row of 3 buttons on the right hand side of your Logic 400. Lift the middle button to adjust the backrest angle. Release the button to lock in place. The angle should be set so that your back makes contact with the backrest.
Q: My gas stem seems a little stiff – is this normal?
Sometimes, over time, the gas stem can become a little stiff when trying to adjust the height. A quick and easy fix for this is using WD-40 or Vaseline. Apply a light layer of grease to the gas stem, then try adjusting the gas stem 3-4 times. The gas stem should now adjust easily.
Q: Can my seat slide forward?
There is a row of 3 buttons on the right hand side of your Logic 400. Lift the button furthest back on the right hand side. About four fingers width between the front edge of the seat and the hollow of the knee provides good blood circulation.
Q: I have lumbar support in my backrest, how do I adjust this?
On the back of the RH Logic backrest is a lumbar pump. Use the pump to inflate the lumbar support to optimal comfort. If you need to deflate your lumbar, simply push the button on the pump.
Q: My chair didn’t come with a neckrest – can I order one to add on myself?
You can retro-fit a neckrest to your Logic 400. Simply remove the small plastic tab on top of your backrest and slot the neckrest in.
Q: How do I stop the rocking motion of my chair?
There is a tilt lock on the right hand side of your Logic 400 at the back. Turn the handle clockwise to lock the chair. To unlock, simply turn the handle anticlockwise.
If you want to adjust the tension of the tilt motion, use the front handle under the right hand side of your seat. Turn anticlockwise for firmer tension and clockwise to loosen the tension.
Q: We have hot-desking and I want to adjust the backrest height – how do I do this?
On the bottom right of your backrest there is a grey handle. Simply pull the handle upwards to adjust the height of your backrest. Once you are happy with the position, push the handle downwards.
Q: My seat has become worn over time – can I just swap a new one for the old one?
Yes, swapping the seat pad is simple. Once you receive your new seat pad, pull off the old worn seat pad. You will notice there are holes underneath around the edge of the seat pad. Simply align these to the seat shell, then push down on the edges to secure the seat pad into place.
Still having problems?
Please give our customer services team a call on +44 (0) 345 345 0010.
